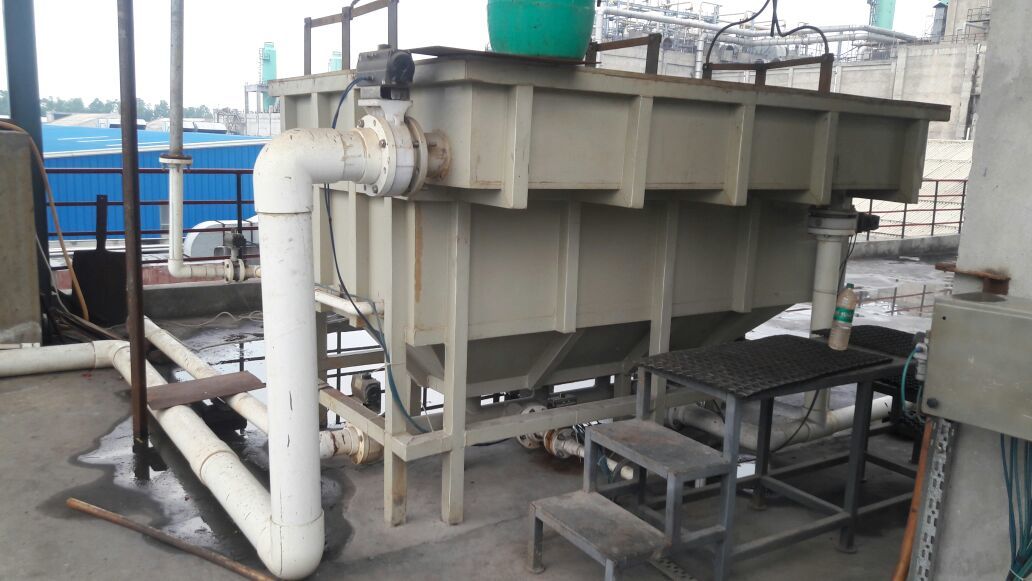

Electro Coagulation System

About Electro Coagulation System

Electro Coagulation System is used to perform the process of Coagulation, which is a common practice in wastewater and water treatment methods. Its process is often utilizedpreceding to sedimentation or filtration. In this system, the repellant forces are used. The said system ensures an ultimate condition for filtration post treatment and sedimentation.Electro Coagulation Systemhas advanced operation, safe utility, and timely completion, due to which its demand in industry has been increased.

We have immense goodwill in this domain, engaged in manufacturing and supplying the top quality Electro Coagulation System. The provided system is widely used for water treatment by removing some solids and other contaminants from water. This offered system is assembled using quality-approved components and latest techniques under the vigilance of our diligent professionals. Apart from this, our valuable clients can avail this Electro Coagulation System in various technical specifications at rock-bottom prices.

Features:

Electro Coagulation System is our uniquely designed worldwide proven technology that we have successfully implemented at our numerous customer venues pan globe.

Electro Coagulation is the process of destabilizing suspended, emulsified or dissolved contaminants in an aqueous state by inducing an electrical direct current to the medium. The electrical current provides the necessary electro motive force to drive the chemical reactions thus the elements or compounds are enabled to approach the most stable state. This state of stability produces a solid that is less colloidal and less emulsified than the compounds at equilibrium values. As this occurs, the contaminants form hydrophobic entities that precipitate and can be easily removed by a number of secondary separation techniques.

Difference between our Electro Coagulation System and Conventional Chemical Treatment System:

Electro Coagulation System	Chemical Treatment System
No usage of Chemicals, hence only TSS and Iron will be the sludge	Usage of chemicals like Lime and Ferrous resulting in high sludge
Hardness Decreases	Hardness Increases
BOD & COD gets removed above 70%	BOD & COD removal is possible only up to 40%
Very Low Operating Cost	Very High Operating Cost
100% Color removed	Cannot achieve 100% Color removal
Simple & Easy Operation and Maintenance	Complex Maintenance Process
Supports Full Automation	Cannot achieve accuracy in the treatment and consumed chemicals when dosing done manually
Low Manpower required	High Manpower required
Easy to operate & maintain	Difficulty to operate & maintain
Consistent Result is achieved due to complete automation	Results can be inconsistent when operations are done manually

Key Features:

Video Link :

https://youtu.be/S-YAdq2uzTA

https://youtu.be/de5xqchyO4c

Efficient Electro Coagulation Technology

This advanced system employs the electro coagulation technique to effectively purify water and industrial effluents. Through precisely controlled electrical processes, contaminants coagulate and are separated from water, ensuring superior treatment outcomes. The automated operation, aided by PLC and HMI controls, delivers consistent performance and reliability for diverse industrial needs.


Low-Maintenance and Durable Design

Built from mild steel with an epoxy coating, this system is designed for durability and demands minimal maintenance. Key safety mechanisms, including overload and short circuit protection, extend system life, while the compact design facilitates easy containerized or skid-mounted installation.


Versatile Applications and Easy Operation

Suitable for a wide range of water sourcesincluding borewell, groundwater, and industrial effluentthe system automatically treats up to 50,000 LPH with quiet, efficient operation. The user-friendly HMI interface simplifies monitoring and adjustment, optimizing water treatment across various industries.
